Mountable Rollers

Mountable Rollers

Hilman’s mountable rollers are made from high-strength steel and built to move heavy loads and withstand long periods of static loading. With superior weight distribution and durable hardened steel rollers, these machine moving rollers are ideal for the frequent movement of heavy loads.

These rollers come in a variety of capacities, frame and top styles.  They can easily be modified for any application.

A Range of Capacities

Hilman’s mountable rollers can move loads between .75 and 125 tons, so you can be prepared with the strength you need for your move without paying extra for unneeded capacity. For loads over 150 tons, choose one of our Super Heavy Duty mountable rollers.

0.75 Tons
Heavy Duty
Super Heavy Duty

Heavy Duty Frame Types

100 to 1000 tons

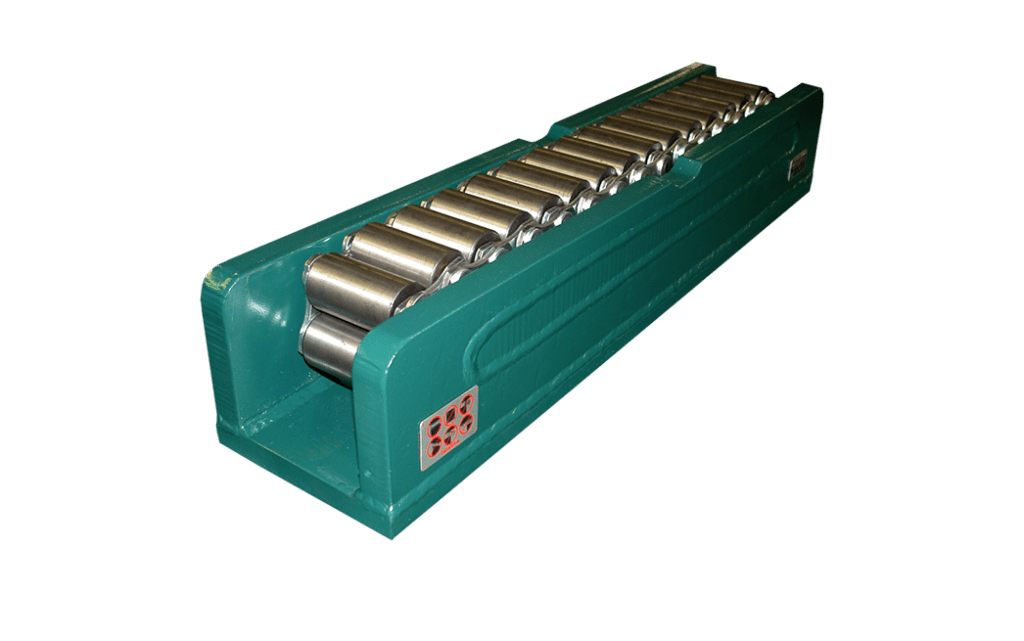

Super Heavy Duty Series

The Super Heavy Duty Rollers are the highest capacity rollers that Hilman offers as standard models.  150 & 200 Ton frames come in Long (L) or Wide (W).  Wide frame versions are offered with one complete (wide) chain or with two individual chains with a center plate (C) dividing them.

10 to 125 Tons

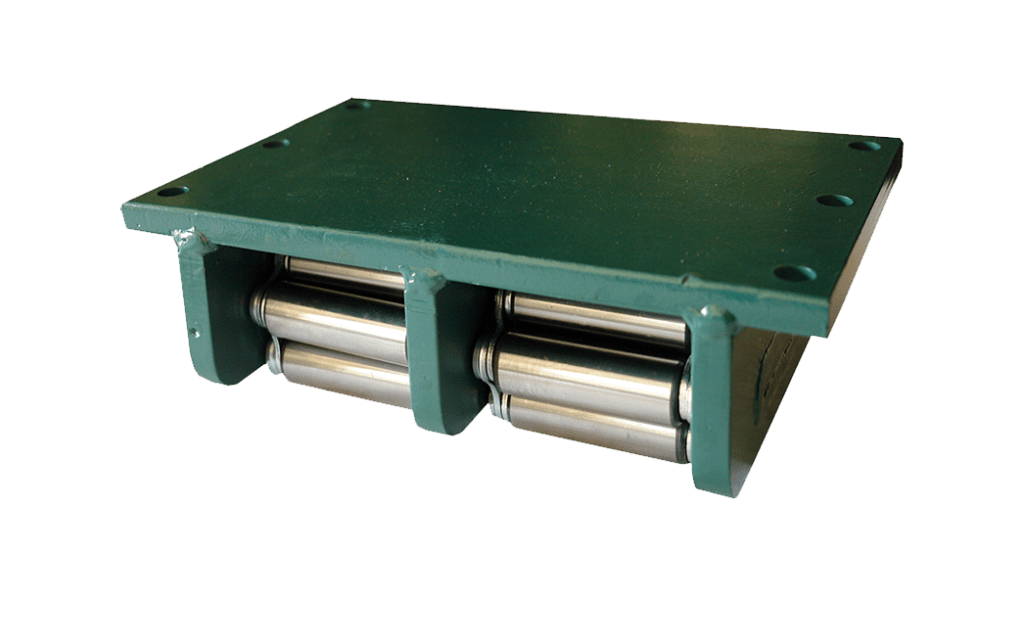

Wide Body Series

The Wide Body Rollers are wider and shorter in overall length.  They are typically used when the OT, NT or T roller might be too long or if a larger contact area is desired.  WB Rollers utilize two separate chains that provide a wider footprint.  Increasing the footprint means the load is spread over a greater area, thus minimizing ‘point’ loading.

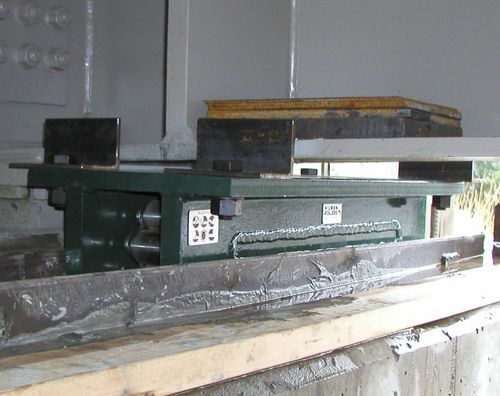

Options & Modifications

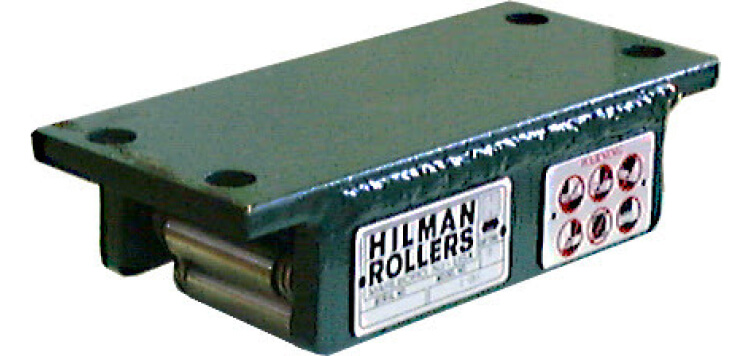

OT and NT are available with standard bolt-on or welded mounting hole patterns. The top plates add extra strength to the frame and variety to mounting capabilities, making one type ideal for cavity mount, bolt-on or weld mount.

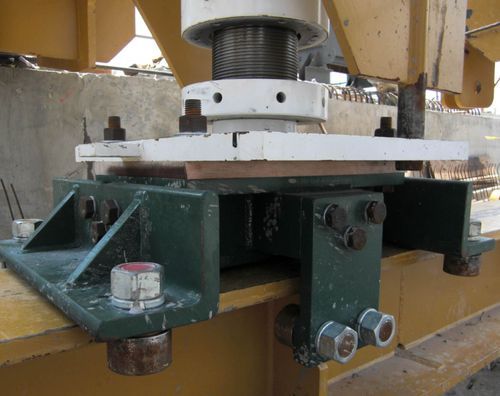

Accu-roll Block

This roller series has the option available to add two end-blocks on either end of the roller frame.  The end-blocks have a drilled and tapped hole pattern that allows for the addition of an external guidance system (Accu-Roll) later on.

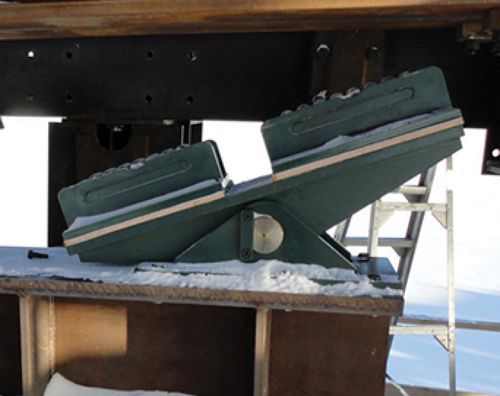

Turntables & Rocker Tops

Additional components for OT and NT rollers include Turntable and Transverse and Longitudal Rocker tops.  Turntables & Rocker tops are particularly advantageous in applications where the rolling surface is imperfect.

Learn More

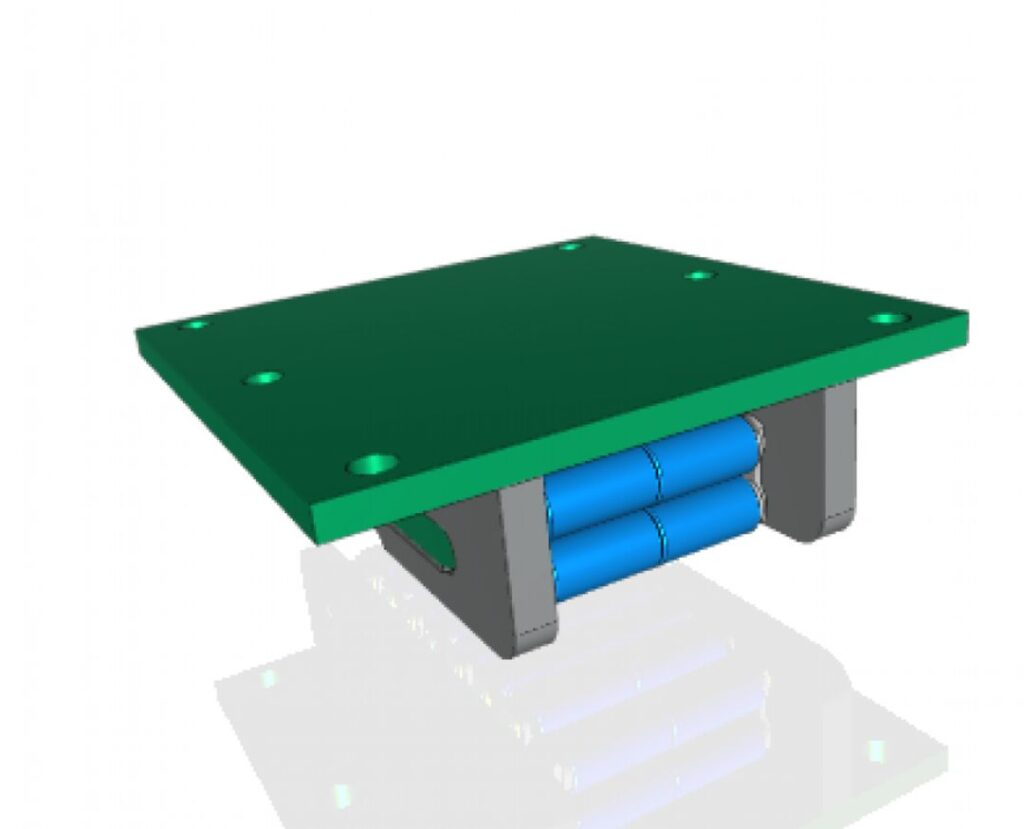

Native CAD Files

We offer native 3D CAD drawing files on most of our standard models for download.  For modifications or custom drawings please contact us directly so we can assist you with the files you need.

View Collection

Product Modifications

Standard customization options for any of our products.

Learn More

Custom Solutions

Made-to-order products built for your specific needs.

Learn More
