Price range: $1,201.00 through $20,891.00
The Hilman Tri-Glide Individual Dollies are available with Polyurethane, Nylon or Steel wheels.

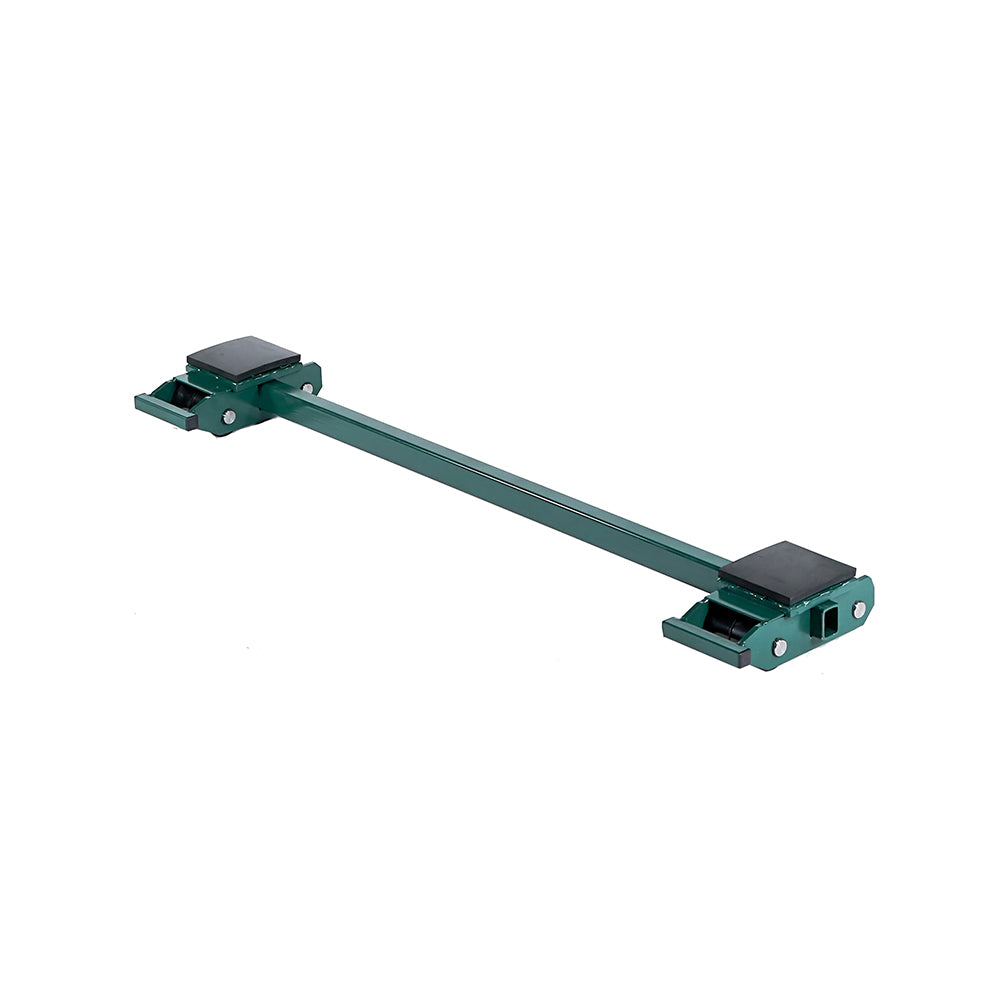

Rear Dollies come with two rigid units, non-slip pads and a spreader bar that is adjustable for fitting under heavy loads with a range of widths.
*Images are for representation only. Actual product may differ.
| Hilman Part # | Capacity | Type | Width (in) | Height (w/pad) | Height (w/o pad) | Wheel Size | Roller Type | Weight (lb) | ||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | |||||||
| TG-R5P | 5 ton | Rear | 6.25 | 4.5 | 114 | 4 | 102 | ⌀3.13 | 79 | Poly | 62 | |
| TG-R7.5P | 7.5 ton | Rear | 7.6875 | 4.5 | 114 | 4 | 102 | ⌀3.13 | 79 | Poly | 68 | |
| TG-R10P | 10 ton | Rear | 9.6875 | 4.5 | 114 | 4 | 102 | ⌀3.13 | 79 | Poly | 78 | |
| TG-R12P | 12 ton | Rear | 8.25 | 5.75 | 146 | 5.25 | 133 | ⌀4.25 | 108 | Poly | 131 | |
| TG-R20P | 20 ton | Rear | 14.1875 | 5.75 | 146 | 5.25 | 133 | ⌀4.25 | 108 | Poly | 162 | |
| TG-R30P | 30 ton | Rear | 17.25 | 7.75 | 197 | 7.00 | 178 | ⌀5.51 | 140 | Poly | 378 | |
| TG-R40P | 40 ton | Rear | 21.0625 | 7.75 | 197 | 7.00 | 178 | ⌀5.51 | 140 | Poly | 428 | |
| TG-R60P | 60 ton | Rear | 15 1/4 | 11 | 279 | 10 | 254 | ⌀8.00 | 203 | Poly | 953 | |
| TG-R80P | 80 ton | Rear | 20 1/2 | 11 | 279 | 10 | 254 | ⌀8.00 | 203 | Poly | 1254 | |
Product Brochure
Have questions about buying this product?
