Nyton Series Kits & Sets

SKU: NYTON-SERIES-KITS-SETS Category:

Price range: $1,476.00 through $5,735.00

Description

Description

The Nyton series addresses the need for heavy moving capabilities on delicate floor surfaces such as new concrete, epoxy coated surfaces, painted or sealed floors, and some properly supported tile and terrazzo floors.

Moving Type

Swivel for turning.

Top Styles

Kits come with either Swivel Padded Tops

*Images are for representation only. Actual product may differ.

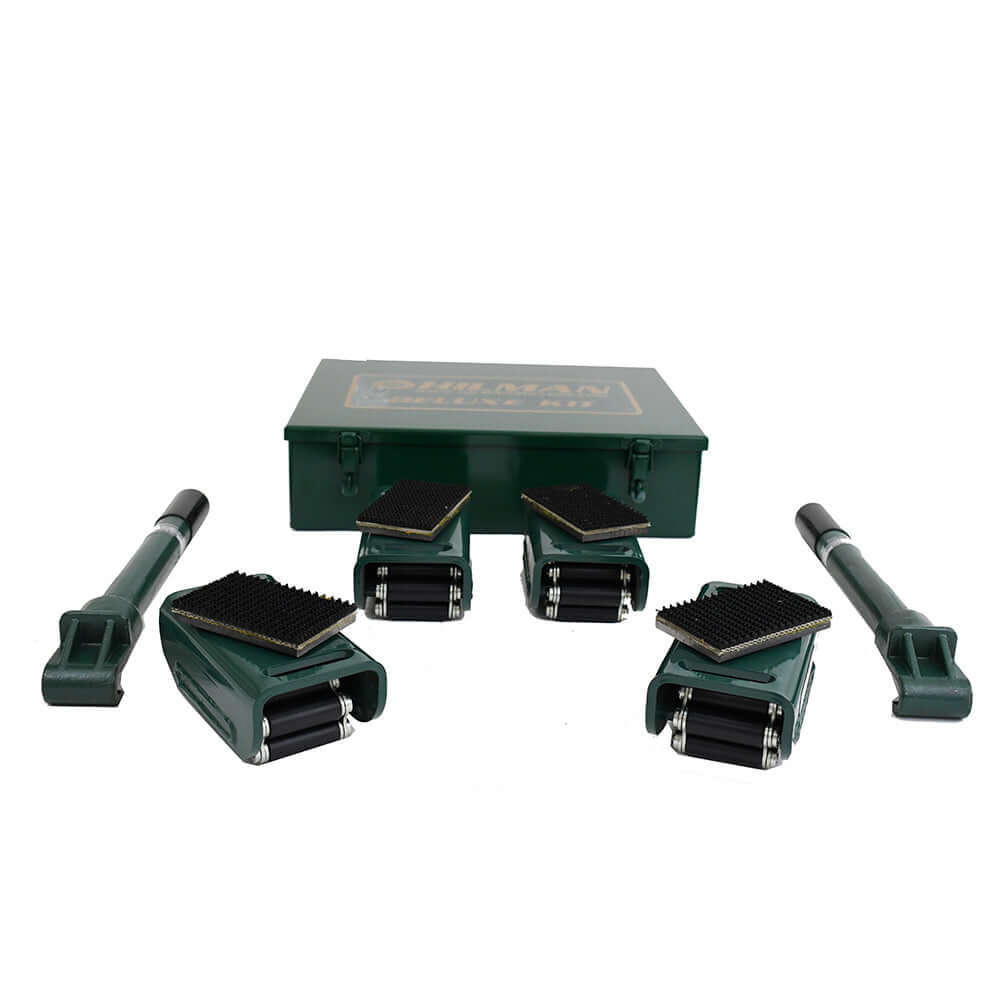

All Kits include 4 Rollers, 2 Handles and a Steel Case Kit Box KB-D1: 16″ (406mm) x 12.375″ (314) x 4.44″ (113mm)

Technical Specifications

Hilman Part # Capacity (tons) Length Width Height Weight Contact Type Top Style
(in) (mm) (in) (mm) (in) (mm) (lb) (kg)
N.5-SP 0.5 6 1/2 165 3 5/8 92 3  7/16 87 7 3 5 Swivel Padded
N1-SP 1 6 1/2 165 4 1/8 105 3 15/16 100 12 5 4 Swivel Padded
N2-SLP 2 10 1/2 267 5 3/4 146 5 127 28 13 5 Swivel Padded
N3-SLP 3 10 1/2 267 5 3/4 146 5 1/4 134 29 13 4 Swivel Padded
N6-SLP 6 12 3/4 324 324 162 5 1/8 130 36 16 5 Swivel Padded
N10-SLP 10 15 381 8 203 5 202 100 45 5 Swivel Padded
