Nyton Individual Rollers

SKU: NYTON-INDIVIDUAL-ROLLERS Category:

Price range: $327.00 through $1,352.00

Description

Description

The Nyton series addresses the need for heavy moving capabilities on delicate floor surfaces such as new concrete, epoxy coated surfaces, painted or sealed floors, and some properly supported tile and terrazzo floors. Special care must be taken to ensure a clean rolling surface as debris may damage the roll material.

Protects Flooring

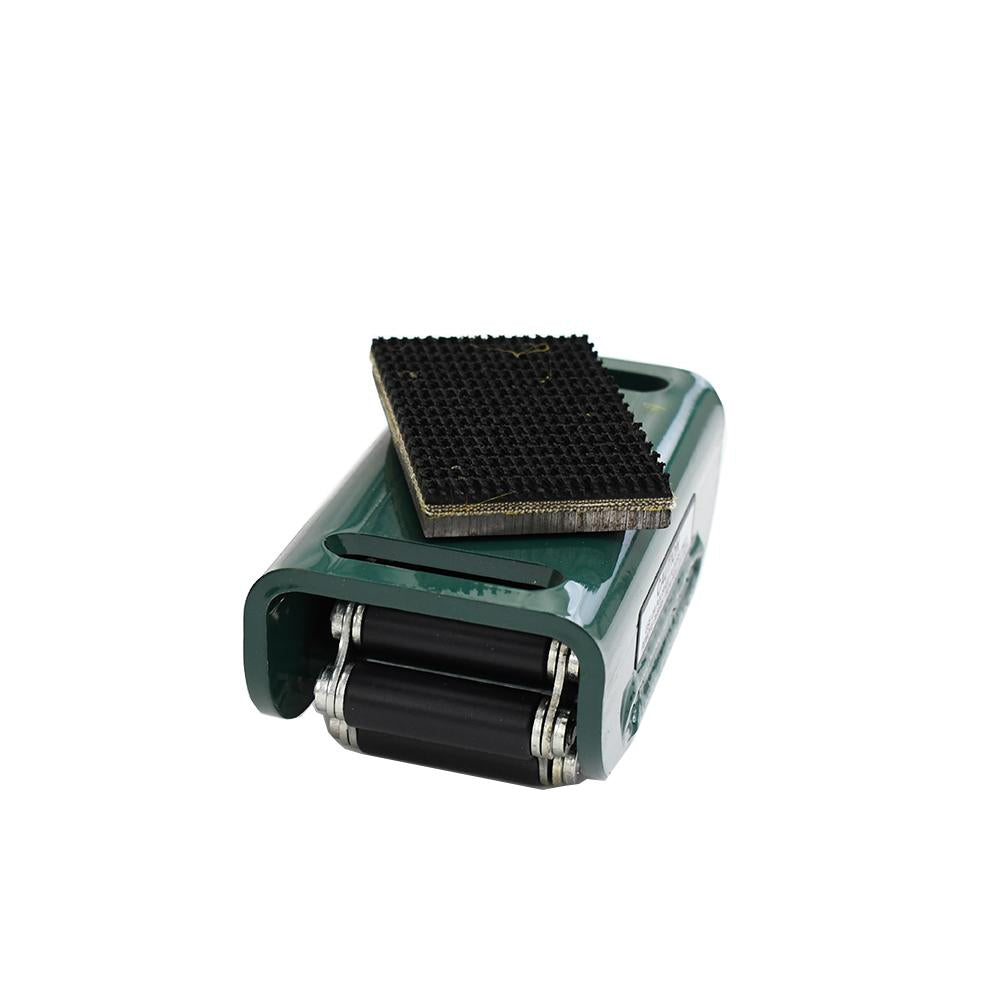

Non-marking high impact synthetic nylon rolls are used instead of steel for added protection on delicate floor surfaces.

Top Styles

Choose Swivel or Swivel Locking for easy turning.  All Tops feature built-in pads, providing a non-slip surface able to compress over uneven surfaces for further floor surface protection.  This helps ensure that the entire chain footprint contacts the floor.

*Images are for representation only. Actual product may differ.

*Width dimension of top exceeds roller frame width

Technical Specifications

Hilman Part # Load Capacity (Tons) CONTACT ROLLS Length (in/mm) Width (in/mm) Height (in/mm) Weight (lbs/kg)
N.5-SP 0.5 5 6.5/165 3.625/92 3.437/87 7/3
N1-SP 1 4 6.5/165 4.12/105 3.93/100 12/5
N2-SLP* 2 5 10.5/267 5.75/146 5/127 28/13
N3-SLP* 3 4 10.5/267 5.75/146 5.25/134 29/13
N6-SLP 6 5 12.75/324 6.375/162 5.125/130 36/16
N10-SLP 10 5 15/381 8/203 7.968/202 100/45
N.5-RP 0.5 5 6.5/165 3.625/92 3.125/80 6/3
N1-RP 1 4 6.5/165 4.12/105 3.625/92 11/5
N2-RP* 2 5 10.5/267 5.75/146 4.187/107 23/10
N3-RP* 3 4 10.5/267 5.75/146 4.312/113 24/11
N6-RP 6 5 12.75/324 6.375/162 4.312/110 31/14
N10-RP 10 5 15/381 8/203 6.75/171 86/39
