All Powered Cart Systems include power unit adaptor with swivel bearing, integrated wheel modules, tie-down shackles, jacking points, and leveling feet. Choose mode of power and cart dimensions and Hilman will deliver you a complete system ready-to-move out-of-box – it’s as easy as 1 – 2 – 3!
Benefits
- Operational Flexibility Choose from two integrated power options, or the swivel front skate configuration to use with your existing mode of power.
- Save Time No more piecing together multiple components. Pre-built platform with integrated skates eliminates complex setup procedures.
- Safer Handling No need to reach under heavy loads as rear skates are pre-assembled and integrated jacking points allow easy placement of the front skate. Tie-down shackles allow for secure handling throughout the process.
- Store and Transport as One Unit Complete systems can remain assembled with power units attached, or front powered skate can be removed and stored separately using leveling feet.
- Pre-engineered for Performance Front swivel bearing for articulation, tie-downs, and power unit compatibility are built-in, ensuring optimal performance for every move.
Applied Mechanics
The Powered Cart System eliminates the complexity of traditional three-point moving setups through an integrated platform approach. Fixed wheel modules provide stable load distribution while the mounting adaptor system incorporates a swivel bearing for articulation and ensures secure power unit integration.
Platform Design The reinforced platform construction is rated at 30 metric ton capacity while maintaining a low 17-inch (432 mm) profile. Strategic placement of tie-down shackles and jacking points optimizes load management and safety.
Power Integration Universal mounting adaptor accommodates TK-EVO (battery-powered machine skate), PowerAttack (battery-powered johnson bar), or Tri-Glide configurations. The secure connection system ensures reliable power transmission while allowing quick changeouts between applications.
Features
Standard Configurations
With three options for the mode of power you are able to choose the best solution for your project.
- TK-EVO – Battery powered machine skate with cordless operation

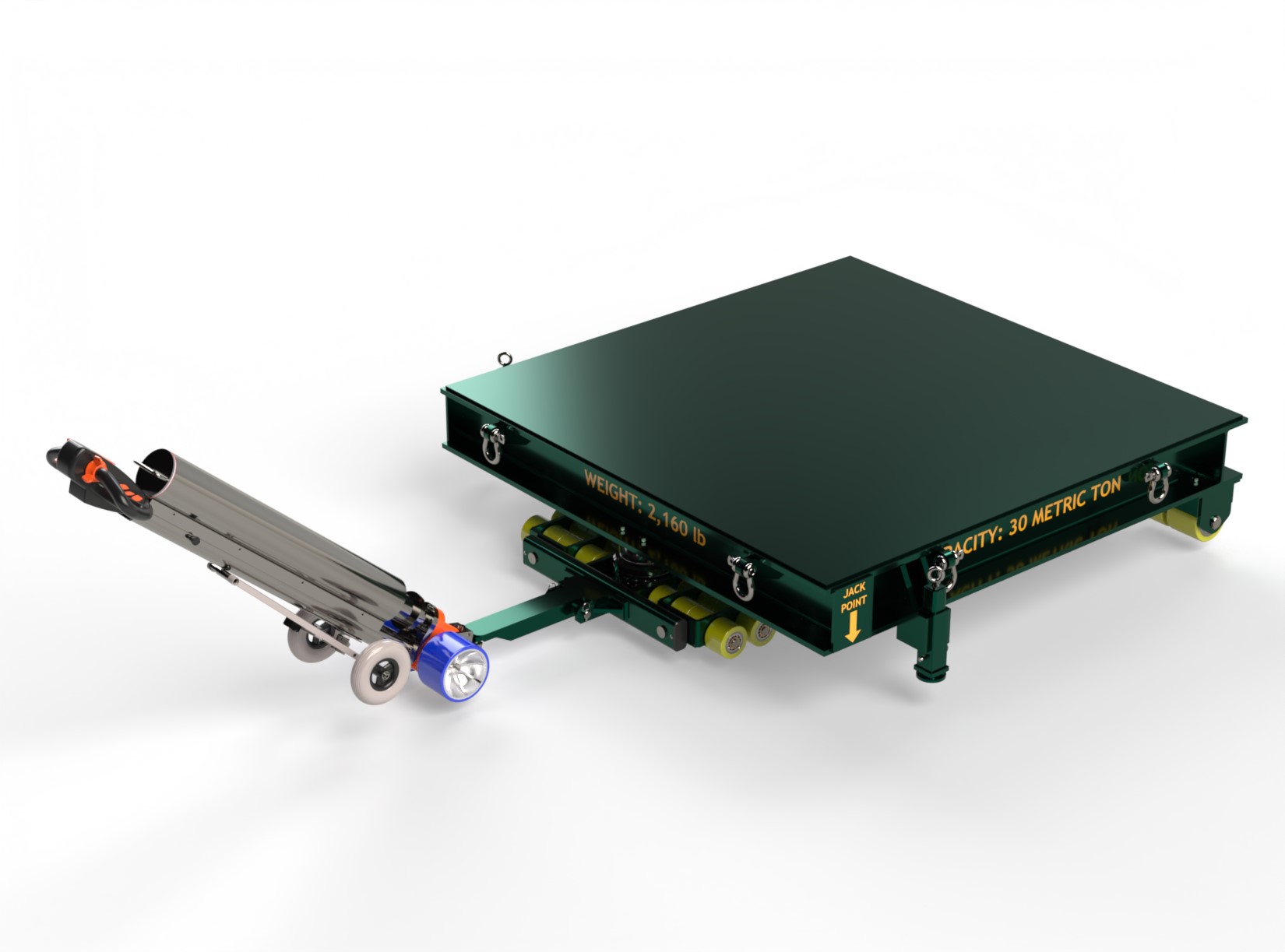

- PowerAttack – Telescoping pusher/puller johnson bar with precision control
-

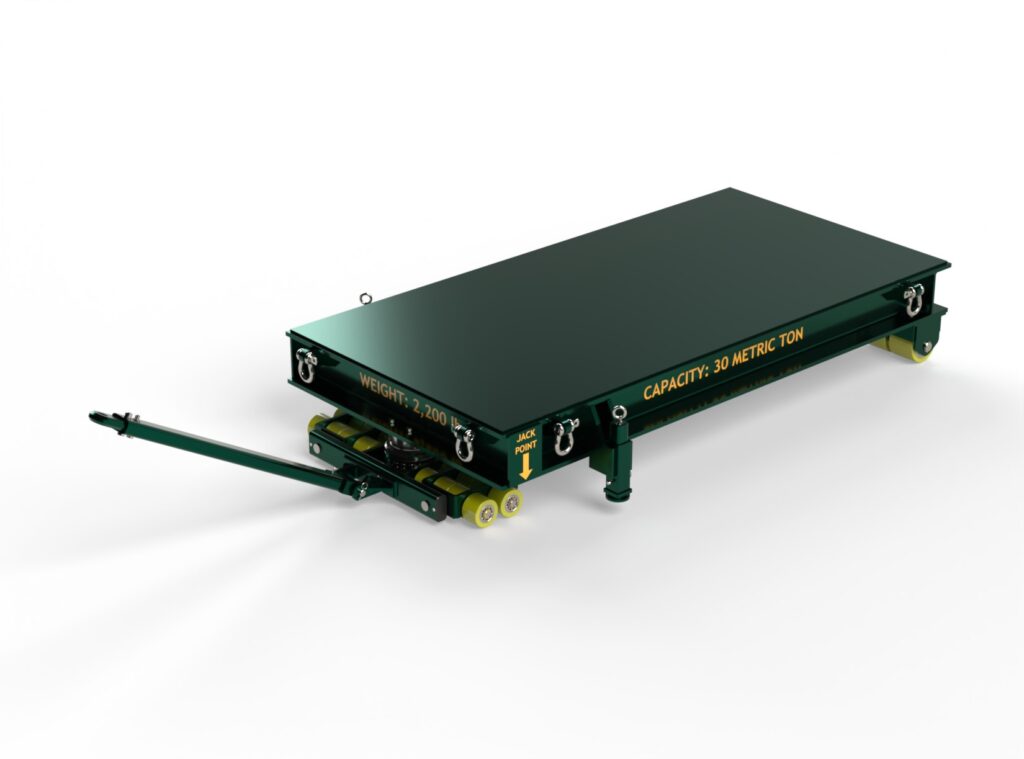

Swivel Front Skate – Equipped with a tow hitch for connection to user-provided power sources
Need a customization?
Contact us to discuss the capacity needed for your application.
Hilman’s NEW Powered Carts offer efficient and reliable solutions for moving loads up to 30 metric tons. Like all Hilman products, these systems can be modified to meet your specific operational requirements.
