Hilman has always been about ingenuity that moves your project forward — and our latest innovation delivers exactly that. The new Hilman Motorized Roller Systems (MRSYS-100E and MRSYS-200E) are complete, ready-to-use packages engineered for heavy straight-line moving on track.
No need to improvise with cobbled together equipment or invest in a custom design – these systems arrive with everything you need right out of the crate: motorized rollers, track sections, a full control panel, and a safety-focused pendant.
Two Capacities, One Powerful Solution

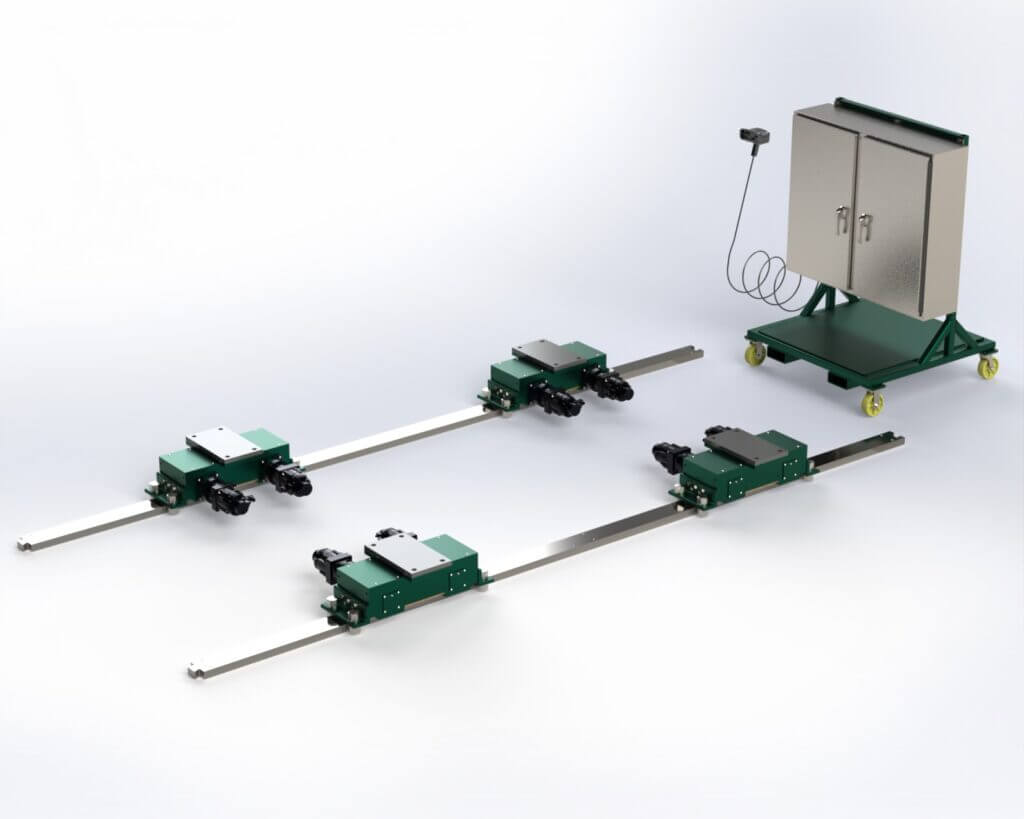

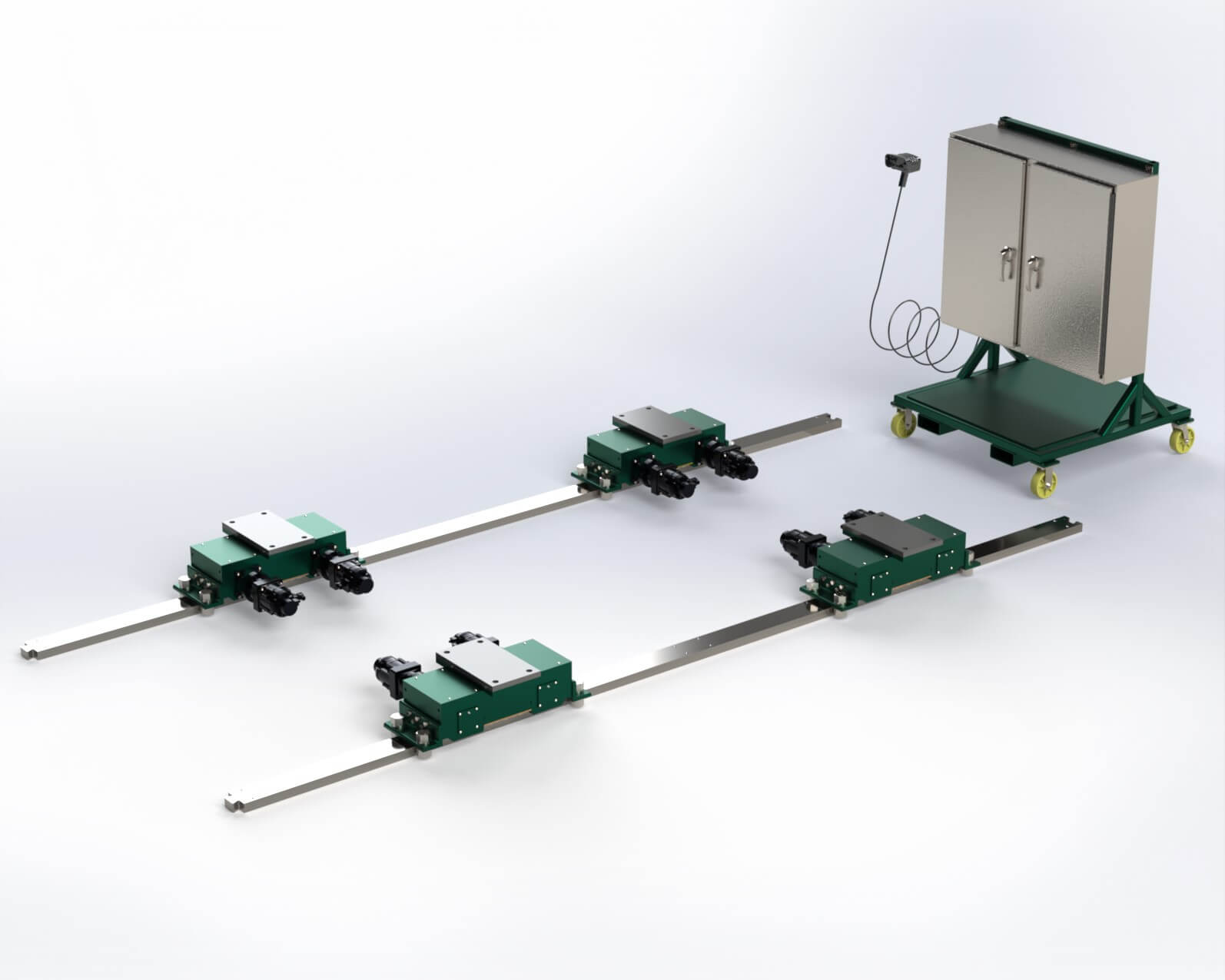

MRSYS-200E – 200 Metric Ton Capacity
- (4) Electric Motorized Rollers, each rated at 50 metric tons
- (8) 4 ft track sections (expandable)
- Complete control panel with (8) power and (8) encoder cables
- Bi-directional control pendant with E-stop and 15 ft cable

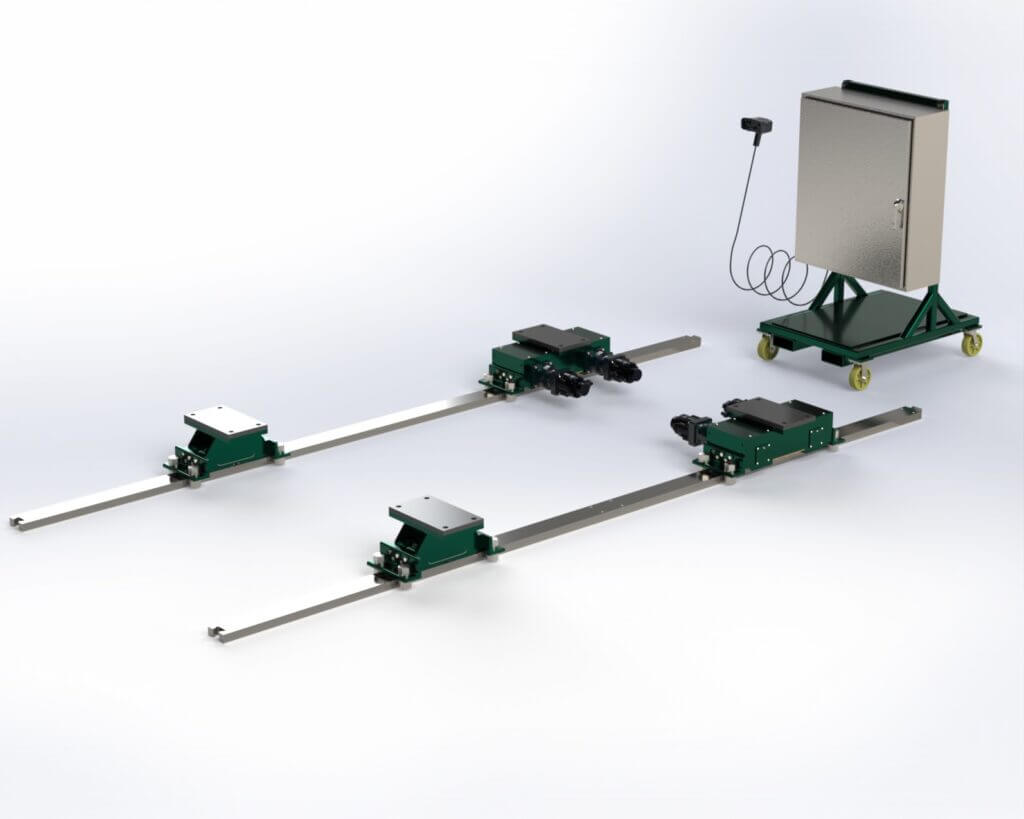

MRSYS-100E – 100 Metric Ton Capacity
- (2) Electric Motorized Rollers, each rated for moving 50 metric tons
- (2) Idler Rollers, each rated at 25 metric tons
- (8) 4 ft track sections (expandable)
- Complete control panel with (8) power and (8) encoder cables
- Bi-directional control pendant with E-stop and 15 ft cable
Built for Real-World Performance
Hilman took their best-in-class steel chain roller designs and integrated powerful electric motors. The result is a low-profile system — just 11.75 in (299 mm) overall height — that delivers smooth, reliable movement even in tight or challenging spaces where cranes, forklifts, and other equipment can’t go.
Each motorized or idler roller comes equipped with:
- Four 2.5 in (63.5 mm) Accu-Roll guides to guarantee straight-line travel
- A neoprene pre-load pad for optimal traction and load distribution
Smart, Safe & Mobile Control
The control panel is fully assembled and ready-to-use from the factory:
- Dual-axis servo motors
- All power and encoder cables included
- Rugged NEMA 4 steel enclosure
- Mounted on a mobile cart with casters and fork pockets for easy positioning
Operators control movement safely from a distance using the included pendant with E-stop (bi-directional on the 200-ton model).
Why These Systems Stand Out
- Out-of-the-box readiness — everything arrives together
- Works in environments where other equipment fails
- Low-profile design
- Precision straight-line movement
- Scalable track — start with eight 4-ft sections and add more as needed
At Hilman, customization is part of our DNA. If your project has unique requirements, our sales team will connect you with our engineering team to help you tailor a solution to fit your application perfectly. (Hilman has been delivering engineered moving solutions since 1953 — over 70 years of heavy-load moving expertise.)
Ready to move your project forward? Contact the Hilman sales team today:
- Phone: +1 732-462-6277
- Toll-free (USA): 1-888-2-ROLL IT (1-888-276-5548)
- Email: sales@hilmanrollers.com
Download the full brochure or visit www.hilmanrollers.com for more.
If it’s heavy, and you’re moving it on concrete or track — Hilman has a solution for you!
